DELA

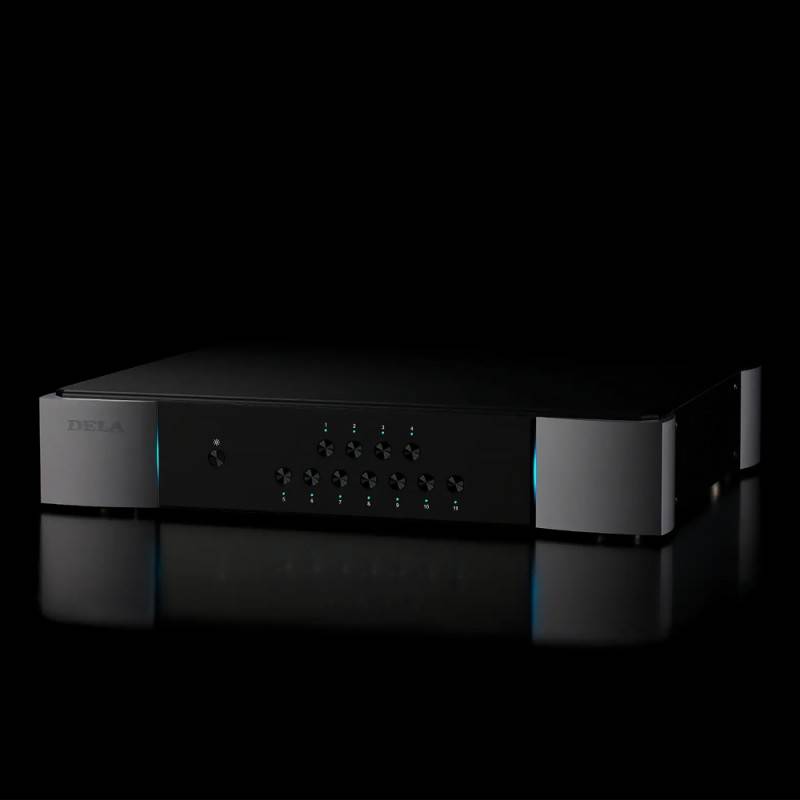

S1 Reference Audiophile Network Switch

Elevate your listening experience with the S1 Flagship Dataswitch where cutting-edge technology meets exquisite sound quality. The S1 is equipped with a fully designed main board that incorporates unique features tailored specifically for high end network audio. The S1 also has a uniquely designed main board optimized for pristine sound quality, ensuring an improved listening experience. With its innovative link speed selector, you can fine-tune each data port directly from thefront panel in real time. Color-coded feedback and port-specific adjustments allow you to create the perfect network environment for your audio system.

The S1 is DELA’s flagship data switch meticulously crafted for high-end audio performance. Building on our expertise developed through the S100 audio network switch, the separate linear power supply model S10, and the premier Music Library N1, the S1 represents the pinnacle of our innovation. Whether you’re a casual listener or a dedicated audiophile, the S1 provides the flexibility you need to achieve the best possible audio experience.

Features

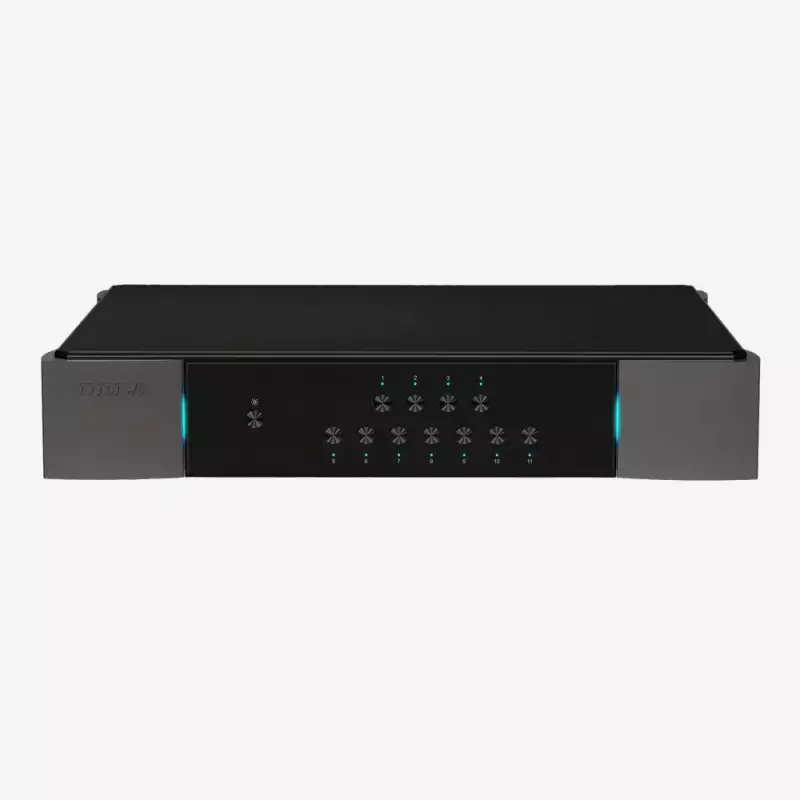

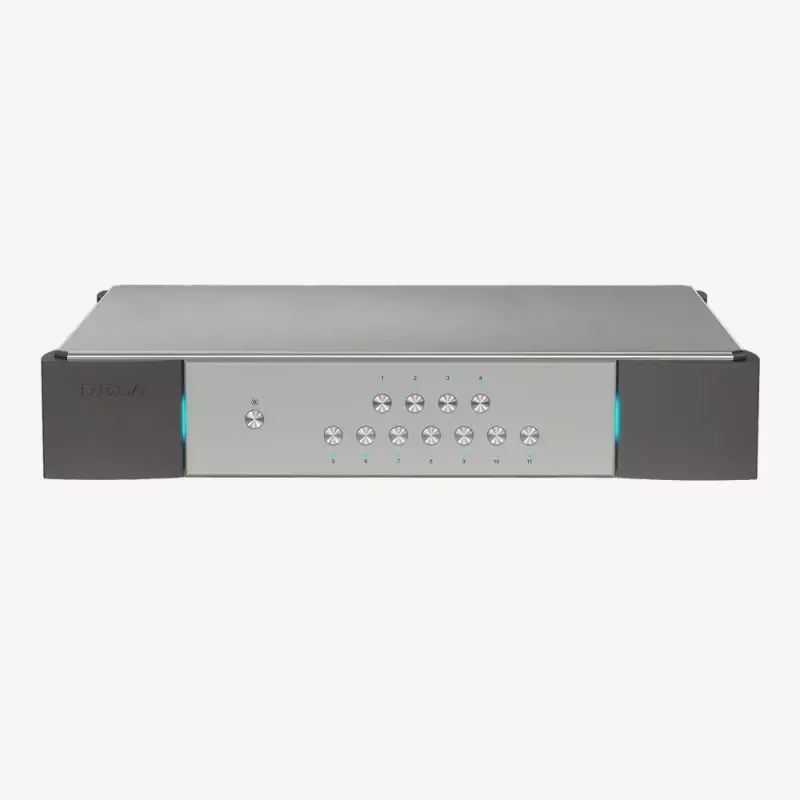

Link Speed Selector: Uniquely, the Melco S1 gives the user capability to fine tune each data port for Link Speed directly from the front panel in real time. The front panel buttons mirror the back panel layout with each port having a single button to select Link Speed which is confirmed by color coded feedback of the button illumination. In this way the user can configure the status of each port for the environment and hardware that it connects to. Additionally any unused port can be selected to be OFF.
Rear panel link / Act LEDs can be disabled by the button on the rear panel.
External clock input
Professional grade Neutrik RJ45 connectors assure reliable connectivity and internal electronics is built around dedicated audio-optimized technology with high grade internal NDK clock, and low noise linear power supply with condenser bank as used in the Melco N1 Music Library.

Specifications
Ports: 4 x SFP+ (No.1-4, 10Gbps/1Gbps/OFF selectable), 7 x RJ45 (No.5-11, 1Gbps/100Mbps/10Mbps/OFF selectable), USB 2.0 (for power supply only)
Output Current: SFP+ Port (4 Ports Total): Max. 1.8 A (DC 3.3 V),SFP+ Port (4 Ports Total): Max. 1.8 A (DC 3.3 V) USB Port: Max. 0.9 A (DC 5 V)
Clock Input: BNC, 10MHz, 50Ω, 0.5–5 Vpp
Power: Dedicated 12 V toroidal separate power supply
Size: 440 x 82 x 353 mm (W H L)
Weight: 14KG
