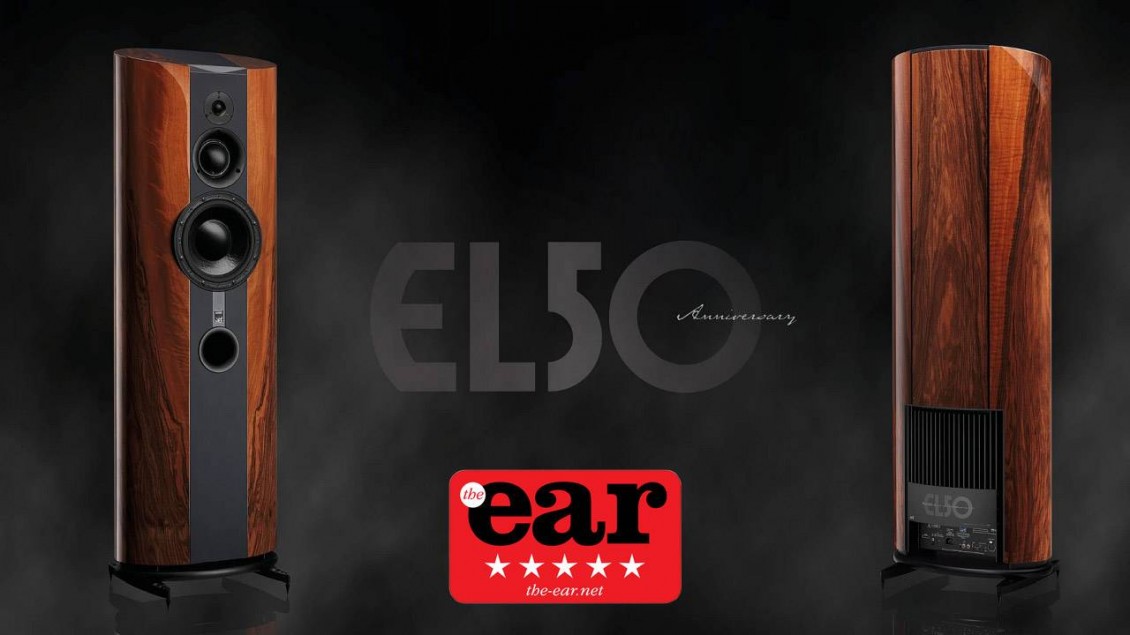

ATC EL50 Anniversary – The Ultimate Active Loudspeaker System > The Ear Review

In the world of high-end audio, few names command as much respect as the British manufacturer ATC (Acoustic Transducer Company). To celebrate its milestone 50th year, the company introduced an extraordinary product to the market – the ATC EL50 Anniversary active loudspeakers. ATC strictly reserves the "EL" designation for its most ambitious, no-compromise designs; it has been used only once before in the company's history, for the legendary EL150 back in 2006.
This in-depth technical and sonic review analysis explores why experts consider this system to be one of the most convincing loudspeaker designs produced in the last four decades, and why it represents the ultimate destination for those seeking pure acoustic truth.

Revolutionary Cabinet Design and Anti-Diffraction Geometry

Unlike traditional studio monitors or domestic loudspeakers from ATC, which typically employ a conventional rectangular box design, the EL50 Anniversary introduces a sophisticated aesthetic and functional departure. The cabinet features an elliptical (EL) cross-section. Standing at an imposing 1.4 meters (nearly 56 inches) tall and weighing a massive 63 kilograms per side, the speaker is surprisingly only 24 centimeters (9 inches) deep. This slim profile makes it relatively easy to integrate into modern living spaces.

The elegant, curved cabinet structure was conceived primarily with performance in mind, rather than just aesthetics. The curved sides are constructed using vacuum-formed plywood to deliver two monumental acoustic advantages:
Maximum cabinet stiffness, which eliminates unwanted parasitic cabinet resonances.
Minimal acoustic diffraction.

Understanding Acoustic Diffraction: Diffraction is an acoustic phenomenon typically caused by sharp cabinet edges, which cause traveling sound waves to bounce off the enclosure boundaries, diffusing and blurring the phantom acoustic image. To eliminate this issue, an enclosure requires a structural radius between a quarter and a half of the target frequency's wavelength. The EL50 boasts a generous 150mm curve radius, which proves highly effective at eliminating diffraction from the crucial midrange upward.

The speaker structure rests securely on an oval plinth supported by beautifully machined aluminum outrigger feet. These feet provide necessary structural stability and perfectly accommodate the heavy-duty spikes supplied in the box for complete mechanical isolation from the floor. The visual appeal is completed by a stunning, book-matched walnut veneer finish, a deep gloss lacquer, and premium leather inserts running down the center face and over the angled top of the cabinet.

Reference-Grade Super Linear Drive Units

Housed inside the advanced cabinet are ATC's proprietary Super Linear drive units, which share their core architecture with the drivers found in the critically acclaimed SCM50 loudspeaker. This classic 3-way configuration consists of:
A 25mm soft dome tweeter handling high frequencies with silky precision and zero grain.
A 75mm soft dome midrange driver, widely celebrated in the hi-fi industry as a reference standard for vocal realism and instrumental texture.
A 234mm (9-inch) bass driver optimized for lightning-fast transient response and low-frequency weight.

Advanced Electronics: Three Dedicated Power Supplies Per Side

While the cabinet engineering is spectacular, what truly sets the EL50 Anniversary apart from standard active models is its internal electronics. In keeping with ATC’s premium active philosophy, the system utilizes robust Class A/B MOSFET amplification. Power is distributed independently to match the exact requirements of each driver:
50W allocated to the treble driver.
100W allocated to the midrange dome.
200W allocated to the bass driver.

The most significant electronic upgrade in the EL50 lies within its power delivery architecture: each individual amplifier benefits from its own dedicated linear power supply. This means there are three independent power transformers hidden within the elegantly curved metal heatsink structure at the back of the enclosure, replacing the traditional single transformer layout with secondary windings.

Furthermore, the internal circuit boards are populated with modern Surface Mount Devices (SMD) instead of old-school through-hole components. This shift is being phased in across ATC's range, but only the EL50 reaps the full performance benefits of the multi-power-supply layout. The resulting system is the most sophisticated electronics package ATC has ever incorporated into an active loudspeaker, delivering lower noise and distortion floors than even their most expensive legacy designs.

Technical Specifications At A Glance:

System Type: 3-way active loudspeaker system with elliptical section
Amplifier Power (Class A/B MOSFET): 350W total per speaker (50W Treble, 100W Mid, 200W Bass)
Power Supply Architecture: Triple independent linear power supplies per enclosure
Circuit Board Technology: Advanced SMD for ultra-low noise
Connectivity: Balanced XLR input with variable sensitivity (1V to 2V)
Physical Dimensions: Height: >1.4m, Depth: 24cm, Weight: 63kg per speaker

The Active Advantage vs. Passive Systems

Active loudspeakers possess an inherent, mathematical advantage over passive speaker alternatives. In an active system, there is no passive crossover network placed between the power amplifier and the drive unit it controls. Because each driver is directly coupled to its own amplifier, the potential for driver control, damping, and electrical grip is an order of magnitude greater than passive designs can ever achieve.
The only potential engineering hurdle in an active architecture is the electronic crossover itself, which must be a low-noise component with zero tonal coloration. Leveraging decades of experience, ATC's implementation of an SMD-based active crossover yields perfect phase accuracy and startling naturalness.

Phenomenal Sound Quality and Listening Impressions

In real-world listening sessions, the ATC EL50 Anniversary delivers a level of transparency, resolution, and insight into recordings that is nothing short of phenomenal. The high frequencies are entirely devoid of fine grain, completely preventing listening fatigue even during extended, multi-hour listening sessions. Audiophiles will simply hear far more of the original studio signal than standard high-end systems can resolve.

The system excels at reproducing the realistic physical dimensions of a performance, creating a expansive soundstage rarely hinted at by conventional amplifier/speaker pairings. When playing dense live recordings—such as Led Zeppelin's No Quarter—the individual efforts of the musicians are separated with staggering clarity. The bass pedals remain extraordinarily clean and powerful, producing a tactile physical presence that mimics sitting in the best seat of the venue.

The EL50 demonstrates remarkable volume linearity:
At high playback levels, it behaves like an elite studio monitor, maintaining perfect control and uncompressed dynamics.
At moderate and low volumes, unlike typical monitors that require being driven hard to wake up, the EL50 retains its full texturing, micro-detail, and low-level atmospheric resolution.
Forgiveness with lesser recordings: While highly revealing, these speakers do not aggressively punish or highlight the technical flaws of older or lower-resolution recordings, allowing the musical performance to always take center stage.

System Integration and Partnering Equipment

The rear panel features a balanced input on XLR and a variable input sensitivity control adjustable between 1V and 2V, making it easy to optimize system gain matching with your preamplifier of choice. Evaluation reveals excellent versatility with premium electronics:
Pairing the EL50 with a high-quality transformer-based passive preamplifier (set to the 1V sensitivity option) yields a deeply open, airy, and transparent presentation.
Pairing it with a high-end active preamplifier, such as the ATC SCA2, injects remarkable focus, image definition, and visceral dynamic power into the room.
The inclusion of standard trigger connections allows for remote turn-on functionality, which is highly practical given that the primary physical power switch is located near the floor on the lower rear panel.

Pros and Cons At A Glance

Pros:
Exceptional resolution and absolute insight into recordings
Studio-grade presentation with minimal tonal coloration
Powerful, perfectly controlled bass with exquisite texture definition
State-of-the-art active design with separate linear power supplies per driver
Masterfully crafted cabinet featuring luxury matched walnut and leather

Cons:
Slightly less inherently airy or open presentation than some domestic rivals
Large and physically heavy (63 kg) despite its slim depth profile
Premium price tag reflecting its flagship status
Demands pristine source components (DAC, Preamp) to fully shine
Distinct aesthetic and studio-accurate voicing may not fit all tastes

Final Verdict: Is the Search Over?
The ATC EL50 Anniversary stands as a monumental celebration of the brand’s first 50 years in audio engineering. ATC deliberately avoids "voicing" its domestic speakers to artificially impress buyers in a showroom; instead, absolute accuracy is the singular goal.
With the EL50 Anniversary, that accuracy has been elevated to a plane higher than you are likely to find anywhere else, regardless of the financial investment. For audiophiles seeking the absolute least-colored, highest-resolution amplifier and loudspeaker combination on the market today, the search is officially over.
